Measured Noise Level for 30-min, dB(A)

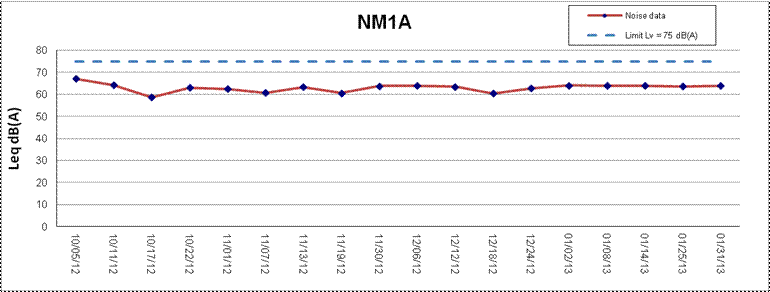

Remarks: (1) The monitoring station at Tai Kwong Secondary School (NM1) was relocated to 168 Shek Kwu Lung Village (NM1A)

starting from 1 September 2011 due to the mentioned school was closed down;

(2) Measured noise level would be shown if Measured noise level (Leq) <= Baseline noise level

Environmental Team for the Widening of Tolo Highway between Island House Interchange and Tai Hang - Investigation

SCALE

N.T.S.

DATE

Feb-13

CHECK

ENFL

DRAWN

PWYN

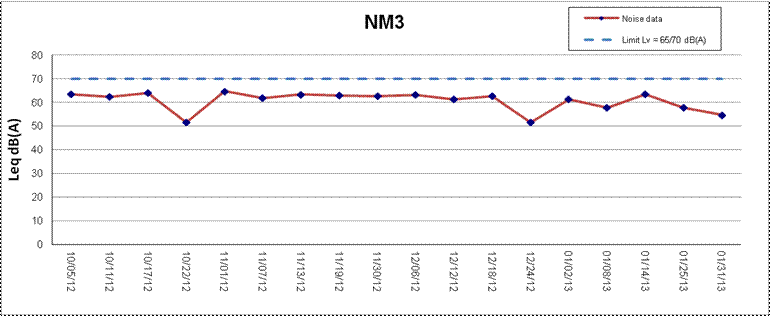

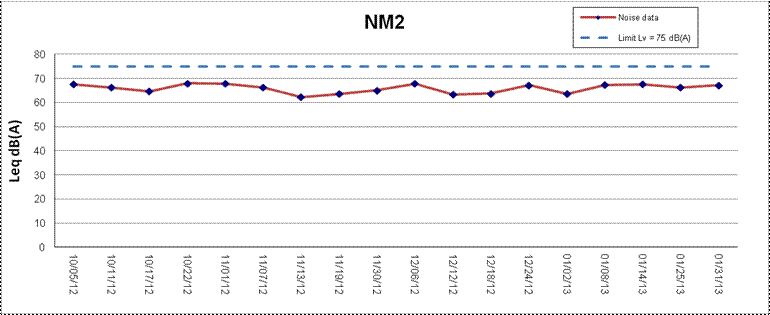

Graphical Presentation of Impact Daytime Construction Noise Monitoring Results

JOB NO.

60102979

APPENDIX No.

Rev.

I

-
